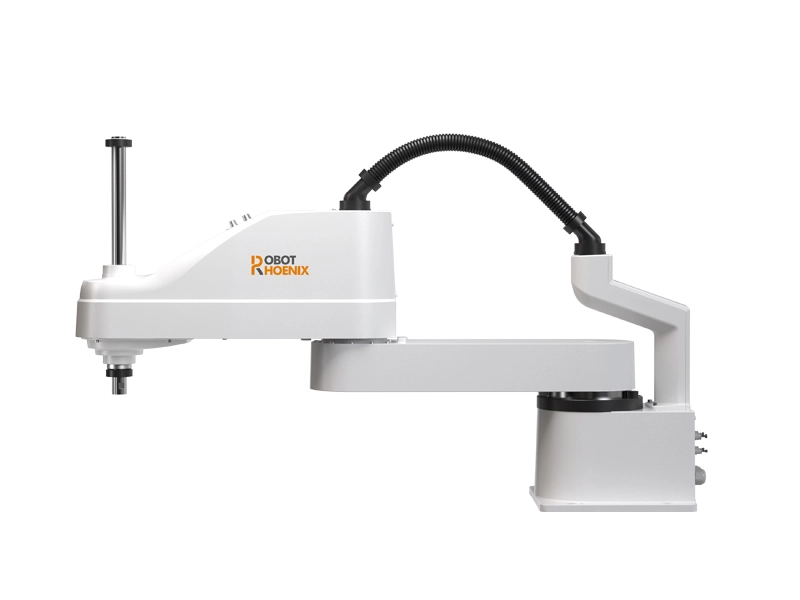

Robotphoenix Python800-B10 SCARA Robot
Python800-B10
Python 800-B10 SCARA Robot is a 4-axis robot with a maximum payload of 10kg. It has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
Python800-B10
Payload
5kg
Repeatability
±0.025mm
Weight
39kg (excluding cable)
Python 800-B10 SCARA Robot is a 4-axis robot with a maximum payload of 10kg. It has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
Specifications
| Robot Model | Python800-B10 | |
| Maximum Operating Speed | Joint 1 and 2 | 9360mm/s |
| Joint 3 | 1600mm/s | |
| Joint 4 | 2600°/s | |
| Repeated Positioning Accuracy | Joint 1 and 2 | ±0.025mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Load | Rated | 5kg |
| Maximum | 10kg | |
| Measure | Installation Hole Diameter | 160×210mm; 4- φ12 |
| Z-axis Diameter | 25mm | |
| Weight | 39kg (excluding cable) | |
| Installation Type | Table Installation | |
| Interface | I/O Interface | |
| Ethernet | 2 | |
| USB | 2 | |
| Ethercat | 1 | |
| RS232/RS485 | 1 | |
