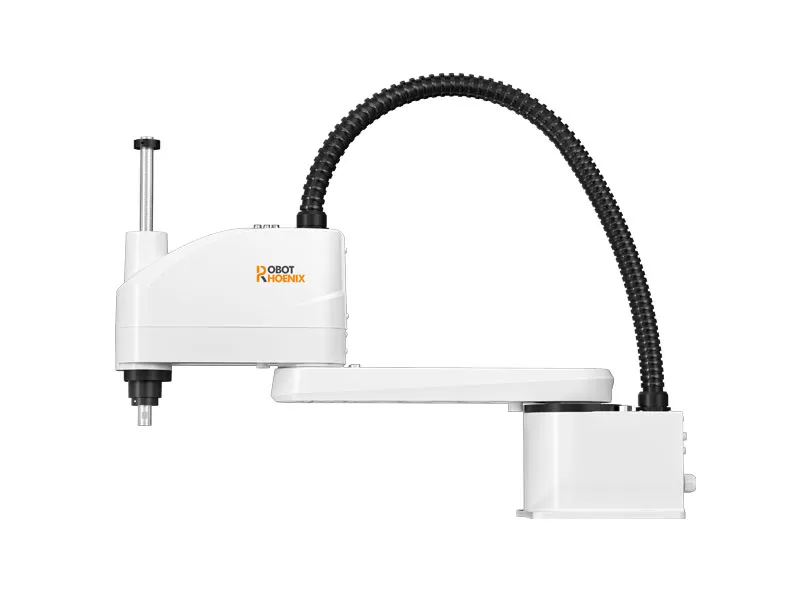

Robotphoenix Python650-B6 SCARA Robot
Python650-B6
Python 650-B6 SCARA robot is a 4-axis robot with a maximum payload of 6kg. Due to its flexible SCARA robot arm, it has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
Python650-B6
Payload
3kg
Repeatability
±0.02mm
Weight
26kg (excluding cable)
Python 650-B6 SCARA robot is a 4-axis robot with a maximum payload of 6kg. Due to its flexible SCARA robot arm, it has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
Specifications
| Robot Model | Python650-B6 | |
| Maximum Operating Speed | Joint 1 and 2 | 8200mm/s |
| Joint 3 | 1100mm/s | |
| Joint 4 | 2360°/s | |
| Repeated Positioning Accuracy | Joint 1 and 2 | ±0.02mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Load | Rated | 3kg |
| Maximum | 6kg | |

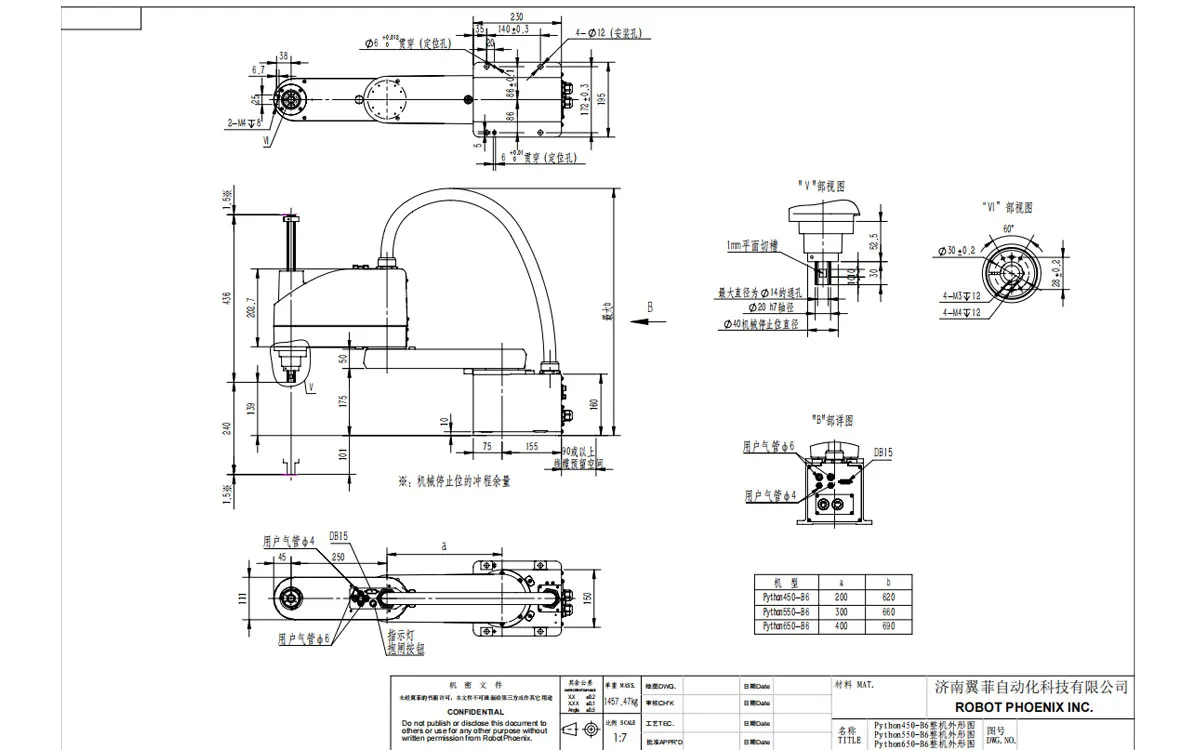

| Measure | Installation Hole Diameter | 172×140mm; 4- φ12 |
| Z-axis Diameter | 20mm | |
| Weight | 26kg (excluding cable) | |
| Installation Type | Table Installation | |
| Interface | I/O Interface | |
| Ethernet | 2 | |
| USB | 2 | |
| Ethercat | 1 | |
| RS232/RS485 | 1 | |
