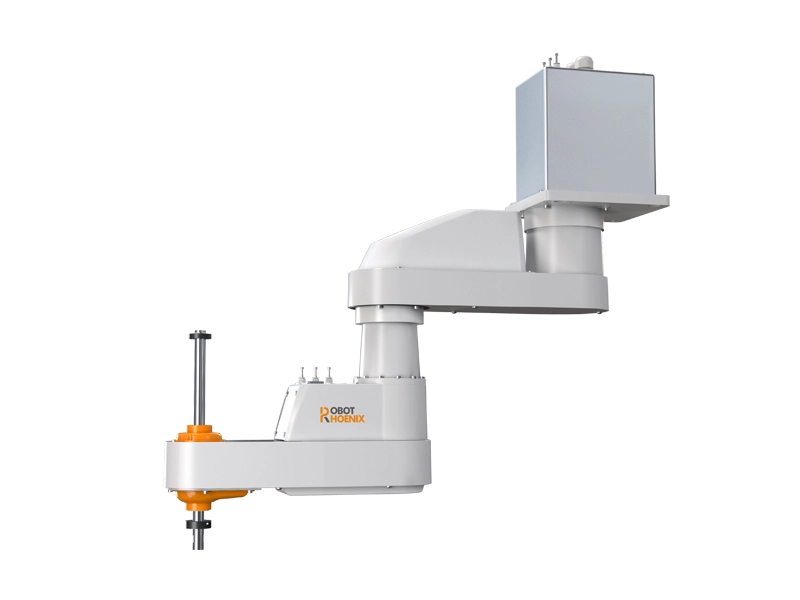

Robotphoenix Python550F-B3 SCARA Robot
Python550F-B3
Python 550F-B3 SCARA Robot is a 4-axis robot with a maximum payload of 3kg. It has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
Python550F-B3
Payload
1kg
Repeatability
±0.02mm
Weight
20kg (excluding cable, body frame)
Python 550F-B3 SCARA Robot is a 4-axis robot with a maximum payload of 3kg. It has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
Specifications
| Robot Model | Python550F-B3 | |
| Maximum Operating Speed | Joint 1 and 2 | 7400mm/s |
| Joint 3 | 1100mm/s | |
| Joint 4 | 2600°/s | |
| Repeated Positioning Accuracy | Joint 1 and 2 | ±0.02mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Load | Rated | 1kg |
| Maximum | 3kg | |

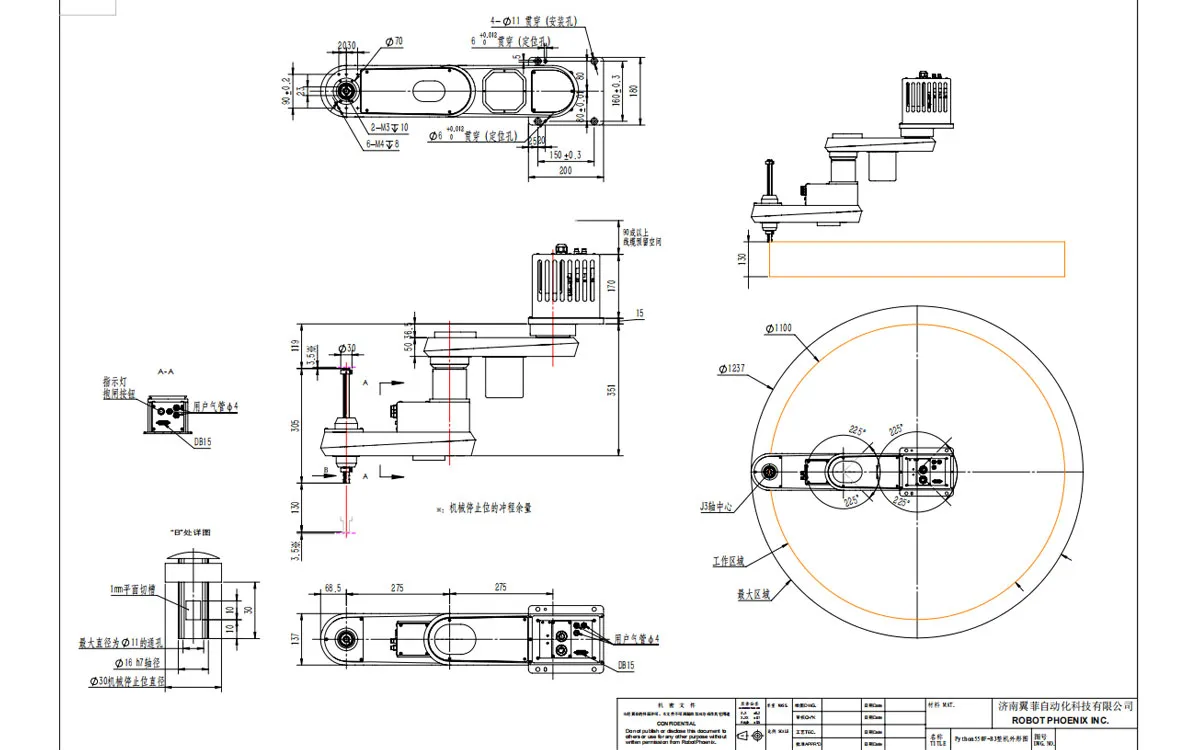

| Measure | Installation Hole Diameter | 150×160mm; 4-φ11 |
| Z-axis Diameter | 16mm | |
| Weight | 20kg (excluding cable, body frame) | |
| Installation Type | Ceiling installation | |
| Interface | I/O Interface | |
| Ethernet | 2 | |
| USB | 2 | |
| Ethercat | 1 | |
| RS232/RS485 | 1 | |
