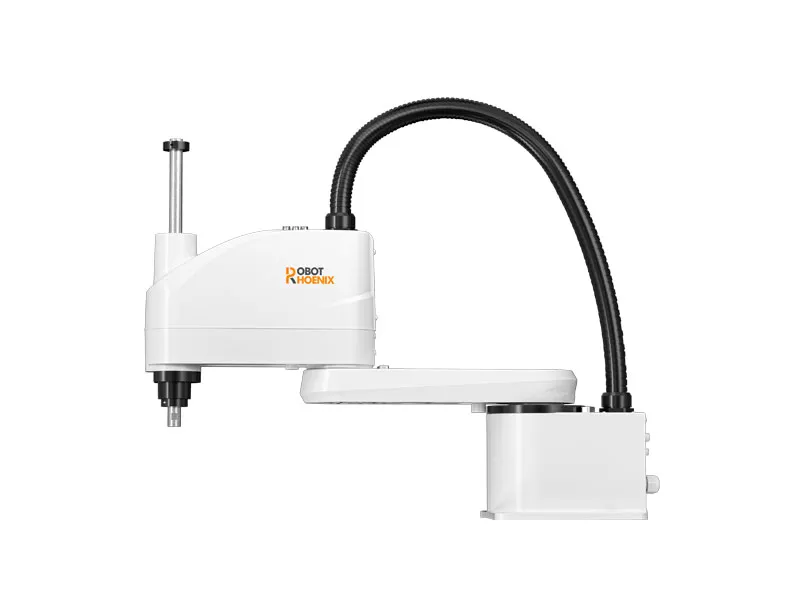

Robotphoenix Python550-B6 SCARA Robot
Python550-B6
Python550-B6 SCARA Robot is a 4-axis robot with a maximum payload of 6kg. This SCARA type robot has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
Python550-B6
Payload
3kg
Repeatability
±0.02mm
Weight
25kg (excluding cable)
Python550-B6 SCARA Robot is a 4-axis robot with a maximum payload of 6kg. This SCARA type robot has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
Specifications
| Robot Model | Python550-B6 | |
| Maximum Operating Speed | Joint 1 and 2 | 7400mm/s |
| Joint 3 | 1100mm/s | |
| Joint 4 | 2360°/s | |
| Repeated Positioning Accuracy | Joint 1 and 2 | ±0.02mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Load | Rated | 3kg |
| Maximum | 6kg | |
| Measure | Installation Hole Diameter | 172×140mm; 4- φ12 |
| Z-axis Diameter | 20mm | |
| Weight | 25kg (excluding cable) | |
| Installation Type | Table Installation | |
| Interface | I/O Interface | |
| Ethernet | 2 | |
| USB | 2 | |
| Ethercat | 1 | |
| RS232/RS485 | 1 | |
