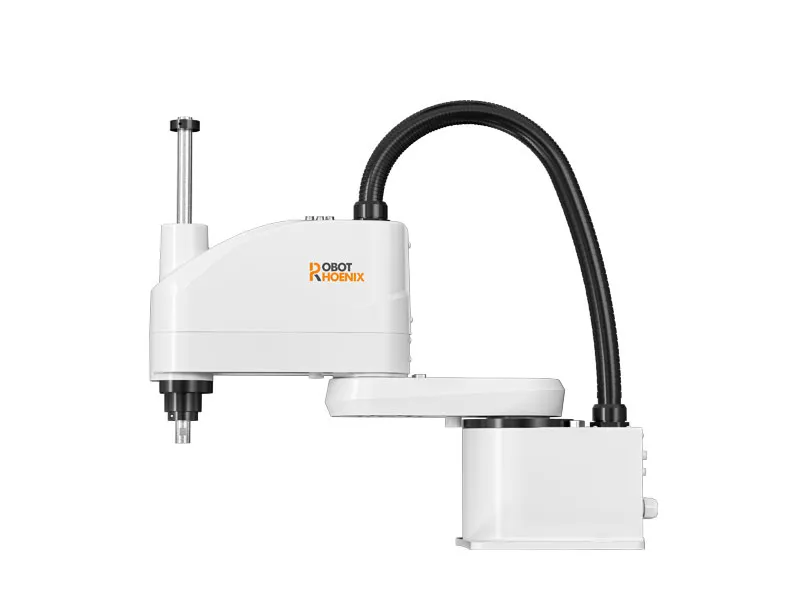

Robotphoenix Python450-B6 SCARA Robot
Python450-B6
Python 450-B6 SCARA Robot is a 4-axis robot with a maximum payload of 6kg. This type of SCARA industrial robots has superior precision, speed, linearity and verticality performance. This small scara robot can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
Python450-B6
Payload
3kg
Repeatability
±0.02mm
Weight
24kg (excluding cable)
Python 450-B6 SCARA Robot is a 4-axis robot with a maximum payload of 6kg. This type of SCARA industrial robots has superior precision, speed, linearity and verticality performance. This small scara robot can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
Specifications
| Robot Model | Python450-B6 | |
| Maximum Operating Speed | Joint 1 and 2 | 6600mm/s |
| Joint 3 | 1100mm/s | |
| Joint 4 | 2360°/s | |
| Repeated Positioning Accuracy | Joint 1 and 2 | ±0.02mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Load | Rated | 3kg |
| Maximum | 6kg | |
| Measure | Installation Hole Diameter | 172×140mm; 4- φ12 |
| Z-axis Diameter | 20mm | |
| Weight | 24kg (excluding cable) | |
| Installation Type | Table Installation | |
| Interface | I/O Interface | |
| Ethernet | 2 | |
| USB | 2 | |
| Ethercat | 1 | |
| RS232/RS485 | 1 | |
